A well functioning thermostat allows your own home to be comfortable without overheating or overcooling. When the gadget that shows a temperature that differs from reality, or whilst the machine begins off and on too often, there will be no comfort and electricity control much less efficient. Before suspecting a malfunction, it’s miles beneficial to test what can be associated with calibration, thermostat calibration, or manage settings. This manual explains the way to verify a discrepancy, understand “normal” thermostat behavior, and accurate the scenario in a methodical way.

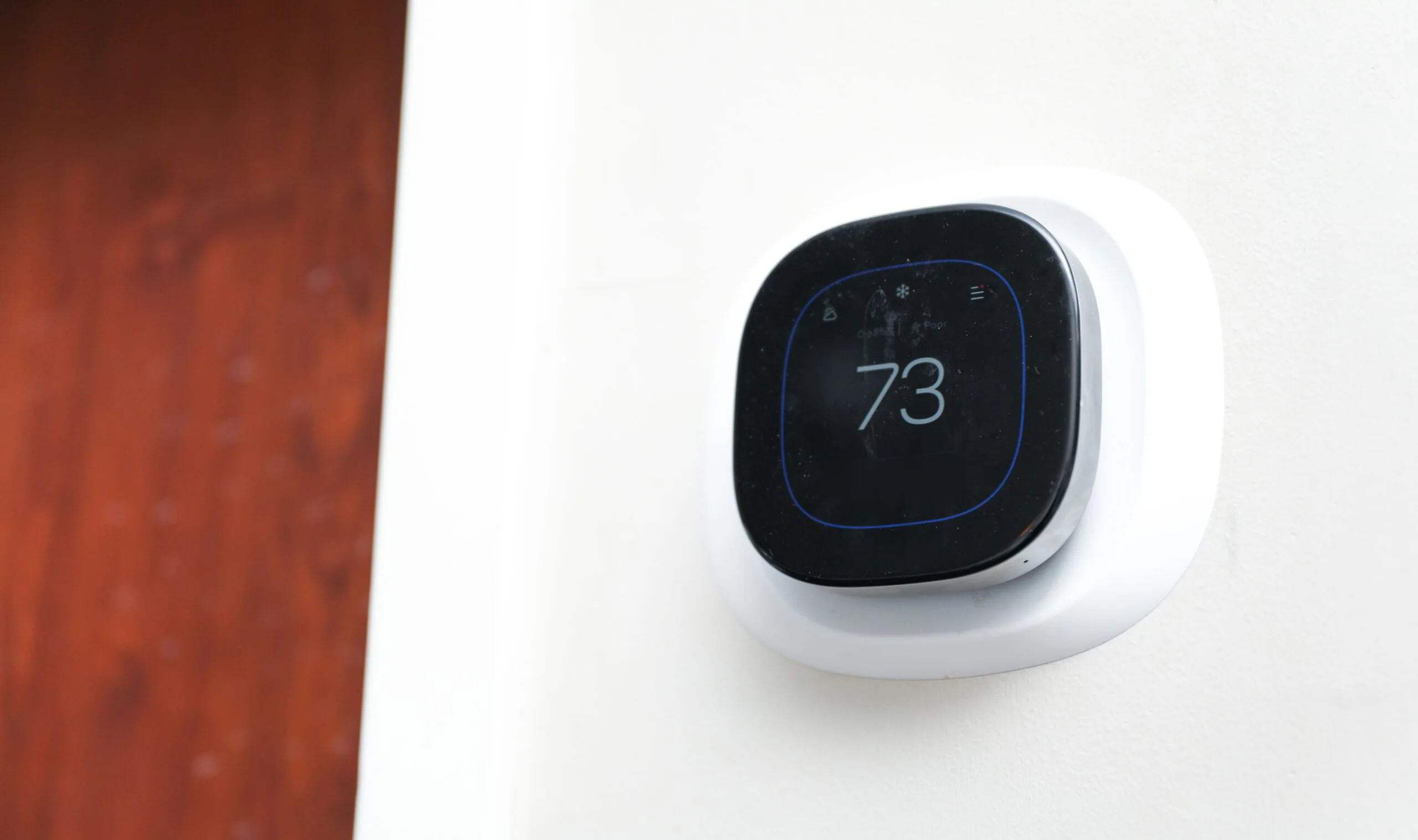

The Fundamentals of Thermostat Calibration
Thermostat calibration includes adjusting the thermostat so it correctly displays the room`s temperature. If a thermostat is off through only some degrees, it may cause discomfort. Calibration settings fine-track the readings to fit real conditions. Regular protection and the usage of a thermometer for verification are key steps. Consistent temperature manipulate allows lessen power waste and enhance HVAC device performance.
Before calibrating: test the maximum not unusualplace causes
Many calibration troubles are certainly associated with the thermostat`s surroundings or to misinterpreting system behavior. The following checking steps help to solve the problem with out distrubing the inner settings of system.
Thermostat placement
A thermostat measures the temperature in its on the spot area. If it’s far inspired via way of means of a this factor, it is able to manipulate the relaxation of the residence primarily based totally on a skewed reference.
Here are the mainly common situations. They are smooth to underestimate, however they give an explanation for a huge part of consolation or comfort discrepancies.
- Direct daylight at the thermostat or wall at positive instances of day.
- Drafts (often open door, stairwell, entryway).
- Cold outdoors wall in wintry weather or heat wall in summer.
- Proximity to a kitchen, lamp, screen, or deliver vent.
- Installation too near a go back air grille that attracts air from elsewhere.
After this list, don’t forget a easy rule: if the thermostat is positioned in a place that doesn’t constitute maximum rooms, its analyzing can be locally “accurate” whilst being “wrong” for ordinary consolation.
Power deliver and primary configuration
Before walking tests, ensure the tool is in everyday running condition.
- Low batteries (if the thermostat makes use of them).
- Selected mode (heating, cooling, auto).
- Schedule or “eco” setpoint by chance enabled.
- Adaptive adjustment (a few thermostats analyze and extrade their behavior).
A easy mode mistakess or overly competitive software can mimic an erroneous thermostat.
Uneven consolation as a result of the system, now no longer the thermostat
A home may be heat upstairs and funky/ cool withinside the basement, or the opposite, with out the thermostat being at fault. In that case, the difficulty is generally air distribution, balancing, or the constructing envelope.
If the discrepancy is confined to positive rooms, it’s miles regularly greater applicable to diagnose airflow than to recalibrate the analyzing.
Required equipment and check conditions
Reliable calibration relies upon much less on thermostat menus than on best check . The intention is to evaluate the thermostat analyzing to a solid reference beneath repeatable conditions.
The reference tool
Ideally, use a good-best virtual thermometer. Industrial-grade device isn’t always required, however keep away from novelty sensors which are unstable.
Conditions to respect
To restriction dimension discrepancies:
- Close doorways and home windows in the course of the check period.
- Avoid cooking, showering, or close by heat sources.
- Allow the region to stabilize for 30 to 60 minutes, relying at the house.
- Place the thermometer approximately 1.2 m to 1.5 m above the floor, withinside the identical region where the thermostat is, without pressing /pusshing to it against the wall.
The intention isn’t always best precision, however a assessment this is strong sufficient to determine whether or not a correction is justified.
Read More: What Is Emergency Heat on a Thermostat?

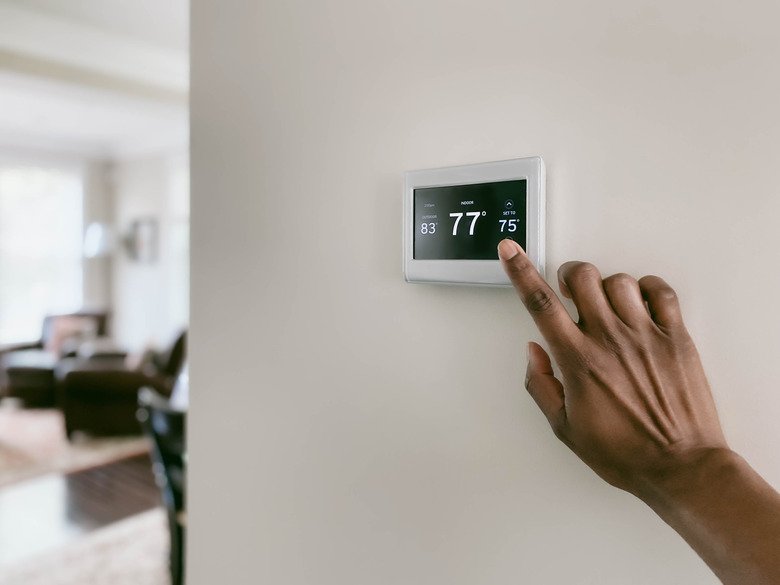

Types of Thermostat
Before you discover ways to regulate a thermostat, you should recognize which kind of thermostat you have. Calibrating is specific for every type.
Non-Programmable
- Most usually used for air conditioning or furnaces, they arrive with one heating and one cooling setting. Standard virtual display, hot and funky cool buttons to manipulate temperature and remaining is an on-off transfer for the fan.
- Specially made for heat pumps. They have heat settings and one cool setting.
- The first transfer is for heating the room step by step and normally, however the second nd one is for emergency heating
Programmable
They are electricity-saving and feature two hot- two cool modes. You can simply transfer them or switch them aline with the temperature of the day. In this one, you not need to regulate the temperature manually.
Touchscreen
- Simple to put in and smooth to use, similar to your phone.
- There isn’t anyt any trouble with buttons, so that you don`t ought to fear approximately buttons getting jammed.
- On the alternative side, they have no connection with Wi-Fi.
Wi-Fi Connected or Wireless
It is one of the maximum top-tier option to be had and can used from everywhere throughout the home.
Learning Thermostat
They are the most superior ones to be had. You will have to alternate the temperature for the primary few times manually, however after that, it’s going to regulate the settings in line with the room`s temperature.
Does your Thermostat need Calibration
Before you discover ways to calibrate a thermostat, you have to realize if it is needed to be calibrated. These are a number of the symptoms that something is probably incorrect along with your thermostat.
The first one, and the very best one to notice, is the spike in electricity bills. If your thermostat has gone bad, it’s going to supply specific readings that won’t in shape the temperature or is probably walking without your knowledge, main reason to high bills.
Second, the thermostat`s various temperature. If your room temperature isn’t always what you`ve set at the thermostat, it’s miles every other signal that it really need to be calibrated.
Safety Measures
Before you begin working, check surely you have all of the essential protection measures.
- Must wear on goggles, mask and gloves to save you any bodily injury.
- Turn off the HVAC gadget to make certain the thermostat isn’t related or connect to electricity.
- Give it a while to settle down before than starting.
- Use the voltmeter to measure if the electricity has been absolutely cut off.

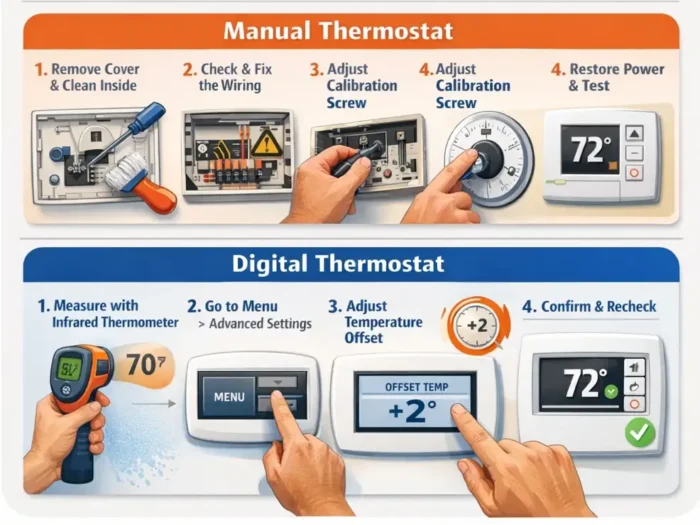

Step-by-Step Thermostat Calibration Guide
Different varieties of thermostats have specific approaches to be calibrated.
Manual Thermostat
First, use a screwdriver to take out the quilt of your thermostat. After this, easy off the dust the use of a broom or blow dryer. Next, test if all of the wires are intact and there is no damaged. If damaged, take them out and alternate them.
Next, we are able to alter or fine-tune the temperature. Use the guide to discover the screw for calibration. Turn the screw to match the temperature of the thermostat to the room temperature.
Turn the HVAC gadget and the power back on, and the electricity. Turn at the thermostat and wait a couple of minutes for it to alter or adjust to the temperature.
Digital Thermostat
Here is a way to calibrate a virtual thermostat
- Check the room temperature the use of an infrared thermometer and examine it to the thermostat to look the distinction.
- Go to Menu button > Preferences > Advanced Preferences> Keep hitting `next` till you see ` Indoor show offsets `displaying indoor temperature and humidity.
- Adjust the temperature in step with the difference that changed into recorded with the thermometer, then press `Done`.
- Check if the temperature fits with the thermometer. If now no longer, then repeat this again.
Energy Savings and Cost Benefits of Proper Calibration
Calibrating the thermostat results in significant financial savings. Properly calibrated thermostats make certain HVAC structures function efficiently, stopping overuse and frequent cycling. This lowers bills and extends the system`s lifespan.
Benefits of calibration:
- Reduced power costs
- Extended HVAC lifespan
- Improved weather control
By stopping common temperature fluctuations, calibrated thermostats assist hold a strong indoor environment, improving consolation and lowering discomfort. Proper calibration helps each power financial savings and efficiency cost.
Maintaining Your Thermostat for Sustained Performance
A well-maintained thermostat continues the HVAC machine working smoothly. Clean the thermostat additives often to dispose of dirt and debris. Verify the thermostat`s placement in a place with solid airflow for correct readings.
Maintenance steps:
- Clean the thermostat
- Check and replace software
- Inspect for put on and tear
Calibrating the thermostat yearly is key. This method entails aligning the thermostat`s readings with the real room temperature.
Conclusion
Understanding a how to calibrate a thermostat facilitates enhance comfort, efficiency, and gadget performance. Proper thermostat calibration, which includes thermostat run cycle calibration and thermostat cycle length or period control, guarantees your HVAC gadget operates as it should be and efficiently. Need assistance with calibrating a thermostat or adjusting your system settings? Hutchinson Heating and Air gives expert thermostat inspections and HVAC offerings in Temecula and Murrieta. Contact us to make sure correct temperature manipulate and reliable home comfort.
Frequently Asked Questions
How to calibrate a thermostat?
To discover ways to calibrate a thermostat, evaluate its studying with a room thermometer and modify settings if needed. Proper thermostat calibration improves accuracy and comfort.
What is thermostat run cycle calibration?
Thermostat run cycle calibration controls how lengthy your gadget runs at some point of every cycle, supporting hold regular temperatures.
What is thermostat cycle long manipulate?
Thermostat cycle long manipulate manages how regularly your gadget on and off, enhancing performance and decreasing wear.
Why is thermostat calibration important?
Thermostat calibration guarantees your gadget reads the precise temperature, which improves consolation and decreases power waste.
How do I recognise if my thermostat need calibration?
If your house feels too warm or cold in comparison to the setting, it is really a call for calibrating a thermostat to repair correct control.
